220V Single Phase Terrazzo Concrete Floor Grinder With Vacuum Port

220V Single Phase Terrazzo Concrete Floor Grinder With Vacuum Port

  • High Light

    Single Phase Terrazzo Floor Grinder

    ,

    Vacuum Port Concrete Floor Grinder

  • Product Name
    220V Single Phase 5.5HP Terrazzo Concrete Floor Grinder With Vacuum Port
  • Voltage
    220V/240V 380V/440V
  • Power(w)
    4KW
  • Automatic Grade
    Manual
  • Working Width
    310*550mm
  • Inverter
    4KW
  • Rotating Speed
    0-1500RPM
  • Water Tank
    30L
  • Add Weight
    20KG
  • Packing Size (l*w*h)
    760*650*1320mm
  • Place of Origin
    China
  • Brand Name
    Merrock
  • Certification
    CE
  • Model Number
    MRK-V6-220B
  • Minimum Order Quantity
    1
  • Price
    USD1300-1500
  • Packaging Details
    Iron frame+carton
  • Delivery Time
    7-15 days
  • Payment Terms
    Western Union, MoneyGram, T/T
  • Supply Ability
    20

220V Single Phase Terrazzo Concrete Floor Grinder With Vacuum Port



220V Single Phase 5.5HP Terrazzo Concrete Floor Grinder With Vacuum Port





Quick Detail:



Name

220V Single Phase 5.5HP Terrazzo Concrete Floor Grinder With Vacuum Port

Application Marble, granite, quartzite, terrazzo, concrete floor
Type MRK-V6-220B grinder Function Leveling, polishing, grinding, renovating





Description:



1. 220V Single Phase 5.5HP Terrazzo Concrete Floor Grinder With Vacuum Port designed for big industrial floor area grinding with high efficiency and competitive price
2. Beautiful and generous appearance design
3. Folding hande and integration control panel, to make operation easy and safe
4. Big power motor with frequency conversion, to meet Frequent and long time use requirements for industrial floor grinding
5. Automatic pressure adjustment control system, to meet the needs of different operation processes
6. Can be equipped with vacuum equipment, realization of dry and wet working mode
7. Knob-style water switch, water spray system from the center of pad holder, an effective solution to the diamond disc wear and
tear and marks generated by grinding, greatly improve work efficiency
8. Multifunctional pad holder can install all kinds of diamond tools, reduce your operation cost as much as possible
9. Scope: Grinding for concrete, granite and marble floor

10. Two grinding plates with 6 pads or disks




Application:



For marble quartzite floor leveling, marble granite floor polishing and grinding, concrete terrazzo floor polishing and grinding, also apply to remove the old coat of epoxy etc...



Video:

https://merrock.wixsite.com/floorgrinder/stone-floor-polishing-machine-mrk-v6


Specification: V6-V12 concrete grinder.pdf

Model MRK-V6-220B MRK-V6-380B
Phase One Three
Voltage(V) 220V 380V
Power 5.5HP/4KW 5.5HP/4KW
Inverter(KW) 5.5HP/4KW 5.5HP/4KW
Speed 0-1500rpm
Work width 310*550mm
Heads 6 pieces
Grinding plate 2 pieces
Water tank 30L/Yellow
NW(KG) 170+20
GW(KG) 230
Packing size(CM) 76x66x134cm





Detail picture:

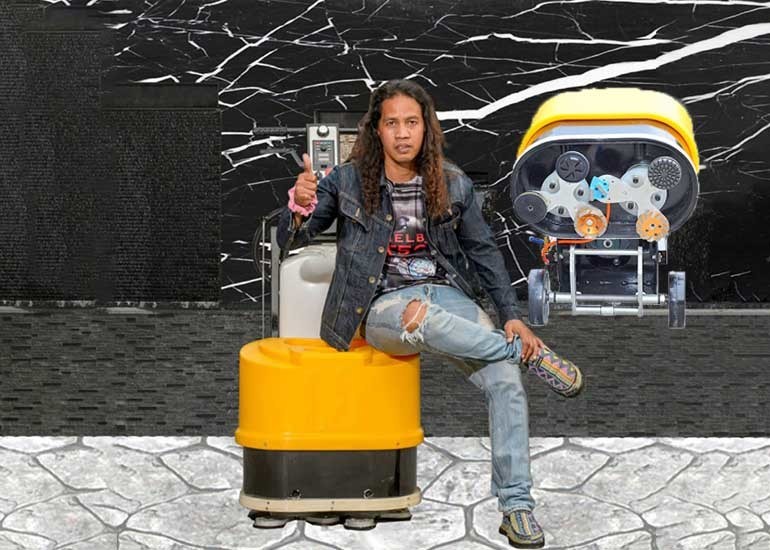

220V Single Phase Terrazzo Concrete Floor Grinder With Vacuum Port 0

220V Single Phase Terrazzo Concrete Floor Grinder With Vacuum Port 1





Available abrasive:



Diamond resin pads



1. Wet polishing pad is for wet grinding and polishing marble, granite, terrazzo and concrete floor.

2. Dry polishing pad is for dry grinding and polishing marble, granite, terrazzo and concrete floor.

3. Novation pad is for wet grinding and polishing marble, granite, terrazzo and concrete floor.

220V Single Phase Terrazzo Concrete Floor Grinder With Vacuum Port 2

Diamond grinding shoes for concrete terrazzo and epoxy floor.

Metal diamond grinding discs for concrete terrazzo and epoxy floor.

Metal diamond grinding blades for concrete terrazzo and epoxy floor.



220V Single Phase Terrazzo Concrete Floor Grinder With Vacuum Port 3





Packing:



Carton + iron frame

Size: 76x66x134cm



220V Single Phase Terrazzo Concrete Floor Grinder With Vacuum Port 4



V6-V12 concrete grinder.pdf
