15KW Planetary Concrete Floor Grinder With Self Propelled System

15KW Planetary Concrete Floor Grinder With Self Propelled System

  • High Light

    Planetary Concrete Floor Grinder

    ,

    15KW Concrete Floor Grinder

    ,

    Self Propelled Concrete Floor Polisher

  • Product Name
    Self Propelled System Planetary System 15KW Concrete Floor Grinder
  • Voltage
    380V/440V
  • Power (KW)
    15KW
  • Inverter (HP)
    20HP
  • Work Area
    750*750mm
  • Autoratation Rate
    0-1250RPM
  • Revolution Speed
    0-320 Rpm
  • Battery
    With
  • Driving Speed
    0-3.7KM/H
  • Working Efficiency
    0-2775 Sqm/H
  • Place of Origin
    Made-in-China
  • Brand Name
    MERROCK
  • Certification
    CE
  • Model Number
    Z12-X-750
  • Minimum Order Quantity
    1pc
  • Price
    USD 6000-6500
  • Packaging Details
    Iron frame+carton, Export wooden box
  • Delivery Time
    30
  • Payment Terms
    Western Union, MoneyGram, T/T
  • Supply Ability
    20

15KW Planetary Concrete Floor Grinder With Self Propelled System



Self Propelled System Planetary System 15KW Concrete Floor Grinder





Quick Detail:



Description

Self Propelled System Planetary System 15KW Concrete Floor Grinder

Application Marble, granite, quartz stone, terrazzo, concrete floor
Type Z12-X-750 Function Leveling, polishing, grinding, renovating





Description:



1. With self propelled system save labor, increase construction efficiency, with planetary system get best effect.
2. Use casting gear box is high in precision and stability.
3. 750mm width work area improve the work efficiency to save time and human cost.
4. Use multifunction plate which with magnetic.
5. Two layer gear


Specification: catalog-grinder polisher.pdf


Model

Z12-X-750

Phase

3

Voltage

380V

Power

20HP/15KW

Inverter

20HP/15KW

Autorotation rate

0-1250rpm

Revolution speed

0-320 rpm

Work width

750*750mm

Heads

12 pieces

Grinding plate

4 pieces

Water tank

30L

Battery

24V, 25AH

Walking speed

0-3.7KM/H

Working efficiency

0-2775sqm/H

NW/GW(KG)

480/530

Packing size(CM)

135x85x140 cm





Detail picture:

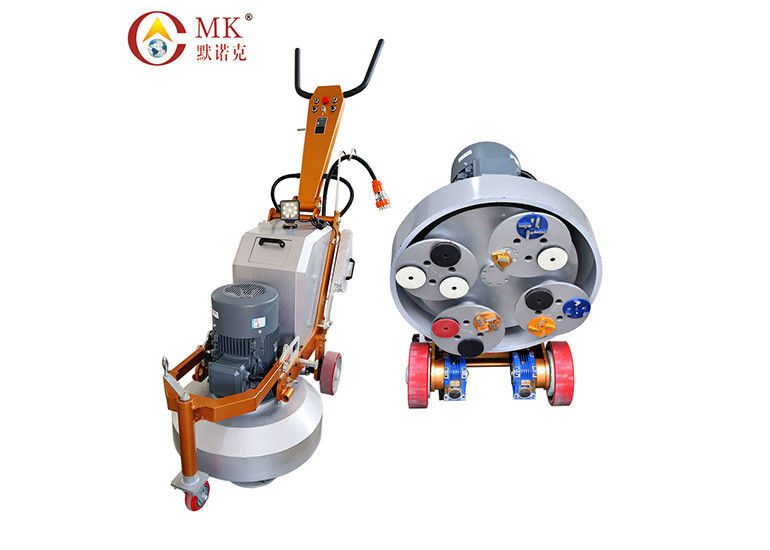

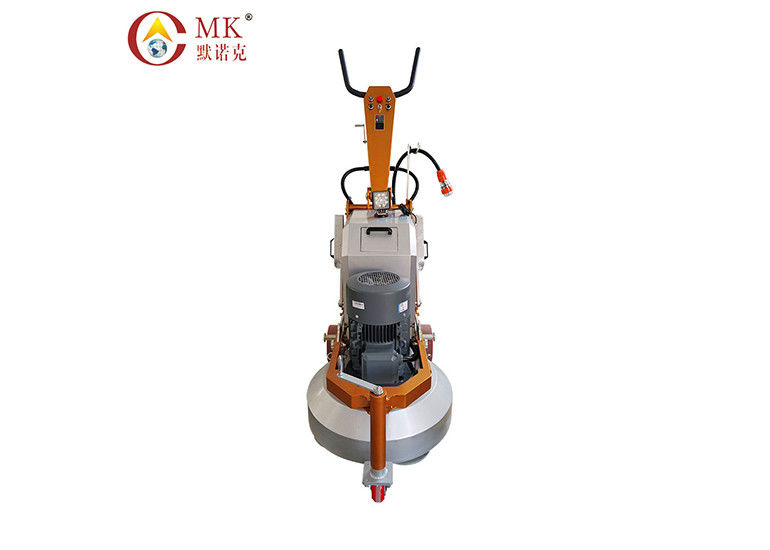

1. Self Propelled System Planetary System 15KW Concrete Floor Grinder with luminum alloy die-casts one body base plate.

2. It can use the dry and wet resin polishing pads, metal diamond grind blades.



15KW Planetary Concrete Floor Grinder With Self Propelled System 0

15KW Planetary Concrete Floor Grinder With Self Propelled System 1

15KW Planetary Concrete Floor Grinder With Self Propelled System 2









Available abrasive:



Diamond resin pads



1. Wet polishing pad for wet grinding and polishing for the marble, granite, terrazzo and concrete floor.

2. Dry polishing pad for dry grinding and polishing for the marble, granite, terrazzo and concrete floor.

3. Renovation pad for wet grinding and polishing for the marble, granite, terrazzo and concrete floor.





Diamond metal blades



1.Diamond grinding shoes for concrete terrazzo and epoxy floor

2.Metal diamond grinding discs for concrete terrazzo and epoxy floor

3.Metal diamond grinding blades for concrete terrazzo and epoxy floor







Packing:



Carton with iron frame

Size: 135x85x140 cm
