Hand Push 11KW / 60HZ 12 Grinding Heads Concrete Floor Grinder
Quick Detail:
| Product name |
Hand Push 11KW / 60HZ 12 Grinding Heads Concrete Floor Grinder |
Application | Marble, granite, terrazzo, concrete and quartzite floor |
| Type | V12-710 | Function | Leveling, polishing, grinding, renovating |
Description:
1. With multi-functional grinding plate is available for all kinds of diamond resin pads and metal blades.
2. Hand Push 11KW / 60HZ 12 Grinding Heads Concrete Floor Grinder is used to produce a smooth finish on flat surfaces for free movement floors.
3. Free movement floors refer to areas where materials handling equipment operate in random, non-defined directions and have an infinate number of travel paths.
4. 4 plates with 12 pieces heads, each time need fix 12 pieces pads (blades).
5. With vacuum cleaner interface could install a industrial vacuum cleaner outside.
6. V12-710 with water tank can wet and dry grinding.
7. It's applied to marble, granite, terrazzo, concrete floor, natural stone floor and quartzite floor etc.
8. It's easy to control and has stable performance.
Application:
Hand Push 11KW / 60HZ 12 Grinding Heads Concrete Floor Grinder is for marble, granite, terrazzo floor leveling, polishing and grinding, concrete leveling, polishing and grinding, also apply to remove the old coat of epoxy etc...
| Model | S12-710 | |||
| Phase | 3 | |||
| Voltage | 380V-415V | |||
| Motor (HP) | 15HP | |||
| Inverter | 11KW | |||
| Grinding Speed | 0-1500rpm | |||
| Work area | 710*710mm | |||
| Heads | 12 pieces | |||
| Grinding plate | 4 pieces | |||
| Water tank | 30L | |||
| NW(KG) | 375KGS | |||
| GW(KG) | 425KGS | |||
Feature:
1. Manual 415V 60HZ 11KW 12 Grinding Heads Stone Floor Polisher with magnetic plate.
2. 710mm big width improve the working efficiency.
3. V12-710 can use the dry and wet resin polishing pads, metal diamond grinding blades.

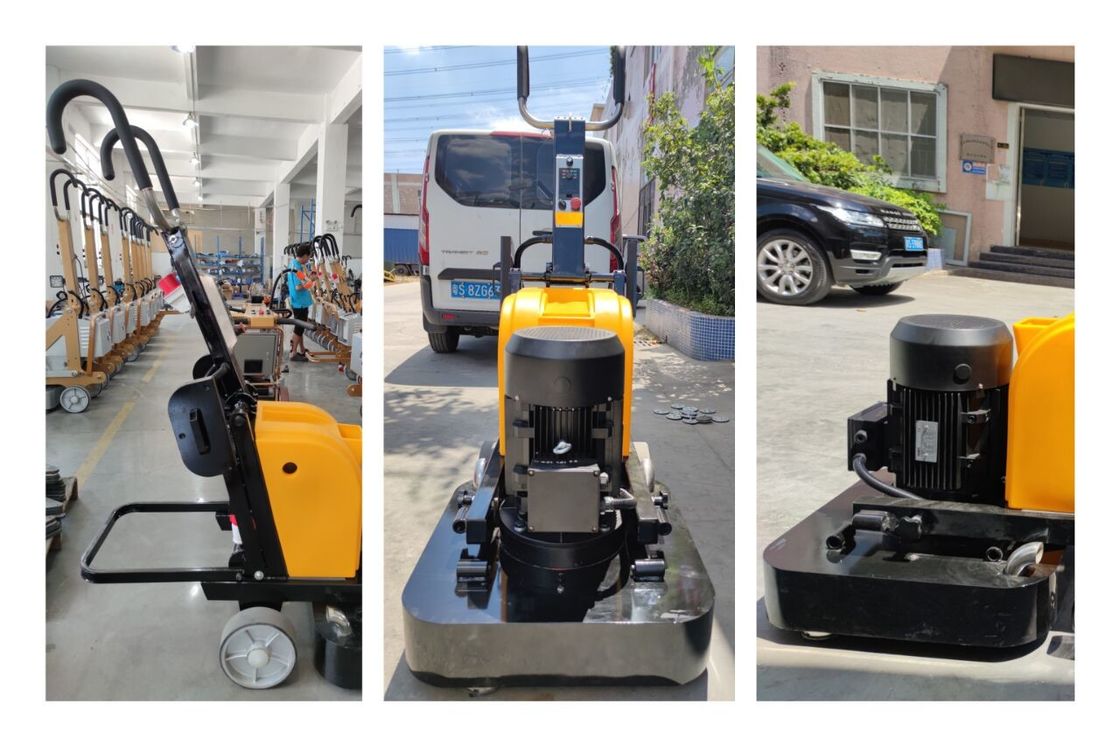

Detail picture:
Tools is available for V12-710:
Diamond resin soft polishing pads ( Wet polishing pad / dry polishing pad / renovation pad)
1. Wet polishing pad grind and polish in wet for the quartzite, marble, granite, terrazzo and concrete floor.
2. Dry polishing pad grind and polish in dry and wet for the quartzite, marble, granite, terrazzo and concrete floor.
3. Renovation pad grind and polish in wet for the quartzite, marble, granite, terrazzo and concrete floor.
Diamond metal grinding shoes (J007) for concrete terrazzo and epoxy floor
Metal diamond grinding discs (J011) for concrete terrazzo and epoxy floor
Metal diamond grinding blades (J008) for concrete terrazzo and epoxy floor
Solution for terrazzo floor:
1. Metal diamond grinding blade
J007 30#
J007 50#
J007 100#
2. Resin diamond wet polishing pad
R-2 50#
R-2 150#
R-2 300#
R-2 500#
3. Resin diamond dry polishing pad
G-2 800#
G-2 1500#
Packing:
Carton + iron frame (Export package)
Tag: concrete floor polishing machine, marble floor grinder
