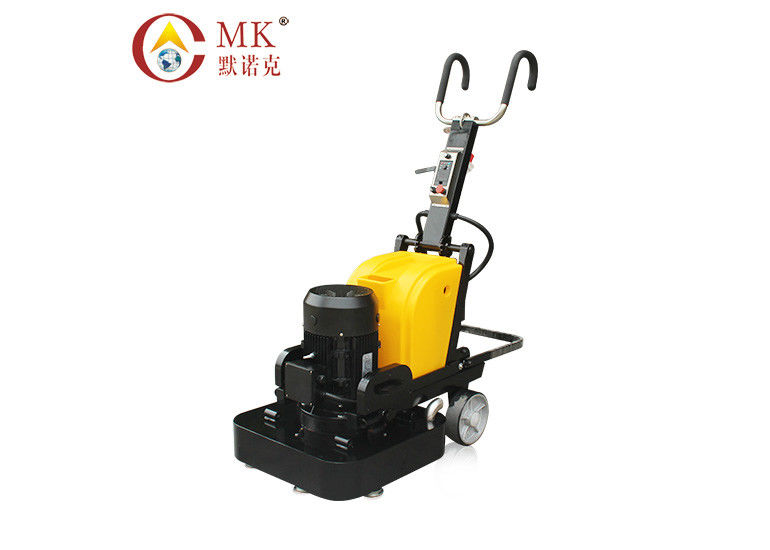

Magnetic Grinding Plate 380V 710mm 15HP Concrete Floor Grinder

Magnetic Grinding Plate 380V 710mm 15HP Concrete Floor Grinder

  • High Light

    710mm Concrete Floor Grinder

    ,

    1500R/MIN Concrete Floor Grinder

    ,

    15HP Concrete Floor Polisher

  • Name
    Magnetic Grinding Plate 380V 710mm 15HP Terrazzo Floor Grinder
  • Voltage(V)
    380V/440V
  • Motor Output (HP)
    15HP
  • Inverter (KW)
    11KW
  • Grinding Width
    710*710mm
  • Grinding Speed
    0-1500RPM
  • Water Tank
    30L
  • Apply To
    Surface Preparation, Marble Granite Floor Grinding Polishing
  • Place of Origin
    Made-in-China
  • Brand Name
    MERROCK
  • Certification
    CE
  • Model Number
    V12-710
  • Minimum Order Quantity
    1pc
  • Price
    USD1000-3500
  • Packaging Details
    Iron frame+carton
  • Delivery Time
    30
  • Payment Terms
    Western Union, MoneyGram, T/T
  • Supply Ability
    20

Magnetic Grinding Plate 380V 710mm 15HP Concrete Floor Grinder



Magnetic Grinding Plate 380V 710mm 15HP Concrete Floor Grinder





Quick Detail:



Name

Magnetic Grinding Plate 380V 710mm 15HP Concrete Floor Grinder

Application Marble, granite, terrazzo, concrete and quartzite floor
Type V12-710 Function Leveling, polishing, grinding, renovating





Description:



1. Wtih multi-functional grinding plate is suitable for all kinds of diamond pad ands blades.
2. 380V 30L Yellow Water Tank 710mm 15HP Concrete Floor Grinder is used to produce a smooth finish on flat surfaces for free movement floors.
3. Free movement floors refer to areas where materials handling equipment operate in random, non-defined directions and have an infinate number of travel paths.
4. 4 plates with 12 pieces heads, each time need fix 12 pieces pads (blades).
5. With vacuum cleaner interface could install a industrial vacuum cleaner outside.
6. It with water tank can wet and dry grinding.
7. It's apply to marble, granite, terrazzo, concrete floor, natural stone floor and quartzite floor etc.
8. It's easy to control and has stable performance.




Application:



Three Phase Black / Yellow Color 710mm 11KW Concrete Floor Grinder it's for marble floor leveling, granite floor polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...



Specification: catalog-grinder polisher.pdf

Model V12-710
Phase Three
Voltage 380V
Motor Output 15 HP
Inverter 11 KW
Speed 0-1500rpm
Working width 710*710mm
Heads 12 pieces
Grinding plate 4 pieces
Water tank 30L
Weight (KG) 375
GW(KG) 425





Feature:



1. Three Phase Black / Yellow Color 710mm 11KW Concrete Floor Grinder with magnetic plate.

2. 710mm big width improve the working efficiency.

3. It can use the dry and wet resin polishing pads, metal diamond grinding blades.





Detail picture:

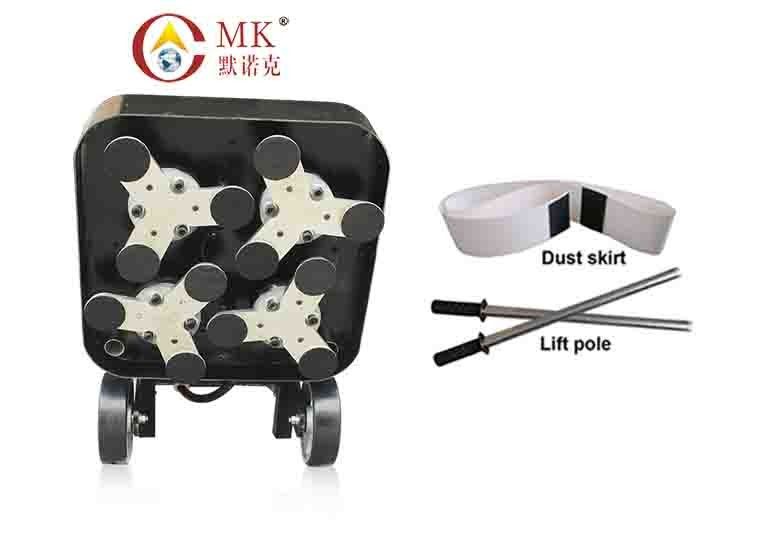

Magnetic Grinding Plate 380V 710mm 15HP Concrete Floor Grinder 0





Tools for the machine:



Diamond resin polishing pads ( Wet polishing pad / dry polishing pad / renovation pad)



1. Wet polishing pad for wet grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.

2. Dry polishing pad for dry grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.

3. Renovation pad for wet grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.





Diamond metal grinding shoes (J007) for concrete terrazzo and epoxy floor

Metal diamond grinding discs for concrete terrazzo and epoxy floor

Metal diamond grinding blades for concrete terrazzo and epoxy floor





Solution for concrete floor:



Magnetic Grinding Plate 380V 710mm 15HP Concrete Floor Grinder 1



1. Metal diamond grinding blade

    J010 30#

    J010 50#

    J010 100#

2. Resin diamond wet polishing pad

    R-1 50#

    R-1 150#

    R-1 300#

    R-1 500#

3. Resin diamond dry polishing pad

    G-1 800#

    G-1 1500#





Packing:



Carton + iron frame (Export package)


catalog-grinder polisher.pdf

Tag: terrazzo floor grinding machine, concrete floor grinding machine
