Home ProductsTerrazzo Floor Grinder

9 Heads Manual Concrete Floor Polisher Single Phase Planetary System

9 Heads Manual Concrete Floor Polisher Single Phase Planetary System

9 Heads Manual Concrete Floor Polisher Single Phase Planetary System
9 Heads Manual Concrete Floor Polisher Single Phase Planetary System

Product Details:

Place of Origin: Made in China
Brand Name: Merrock
Certification: ISO9001,CE,MSDS,etc
Model Number: S9-X-220B

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD 2900-3200
Packaging Details: Iron frame+carton, Export wooden box
Delivery Time: 5-7 work days, OEM 20-25 work days
Payment Terms: TT , West Union
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description
Weight: 200Kgs Voltage: 220V
Automatic Grade: Manual Power(w): 5.5KW
Condition: New Dimension(l*w*h): 550
Motor: 5.5KW Product Name: Polisher Stone Floor Polishing Machine,floor Concrete Grinders And Polishers,floor Dry Grinder
Application: Concrete Terrazzo Marble,Dry Concrete Floor Polishing,Floor Grinding Polishing,Wet/dry Grinding Head: 9 Diamond Grinding Heads
High Light:

220V Concrete Floor Polisher

,

9 Heads Concrete Floor Polisher



9 Heads Concrete Manual Floor Polisher Single Phase Planetary System​





Quick Detail:



Name

9 heads Manual Floor Polisher

Application

Marble, granite, terrazzo, concrete floor

Type

S9-X-220B

Function

Leveling, polishing, grinding, renovating





Description:



  1. With planetary system best for stone leveling..

  2. Three plates, each fix 3 pieces polishing pads, each time need fix 9 pieces polishing pads.

  3. Handle is adjustable, is easy to control.

  4. With inverter could adjust the speed from 0 to 1500 rmp.

  5. Easy and portable



Application:



For stone leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...





Specification:



Type

S9-X-220B

Voltage

220V-240V

Motor

5.5KW

Speed

0-1500 rpm

Body weight

200KGS

Work width

550mm diameter

Water tank

30L

Grinding plate

9 heads

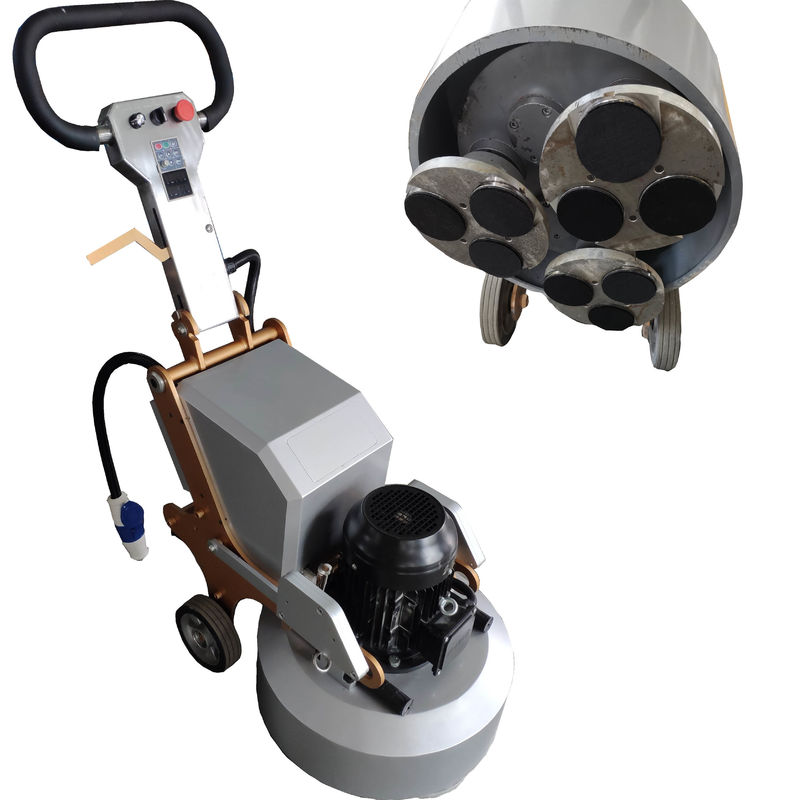

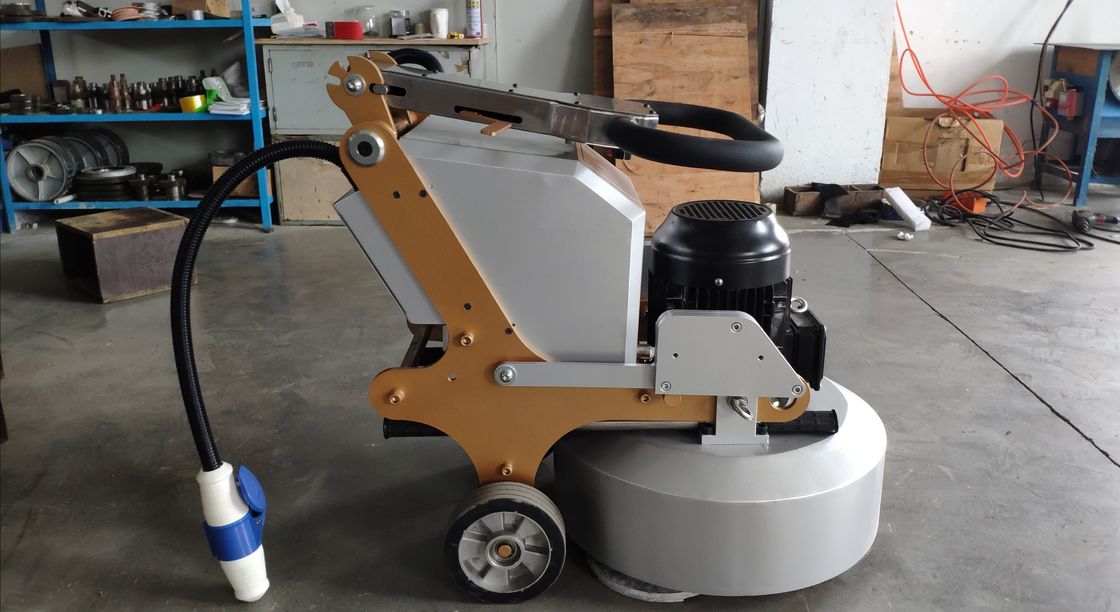

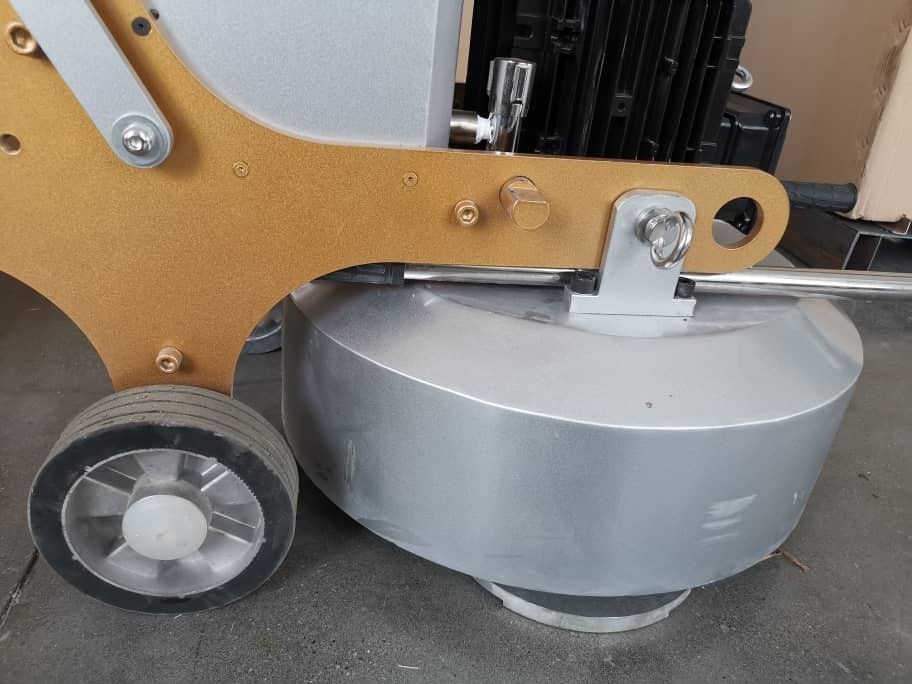

Detail picture:



9 Heads Manual Concrete Floor Polisher Single Phase Planetary System 0

9 Heads Manual Concrete Floor Polisher Single Phase Planetary System 1

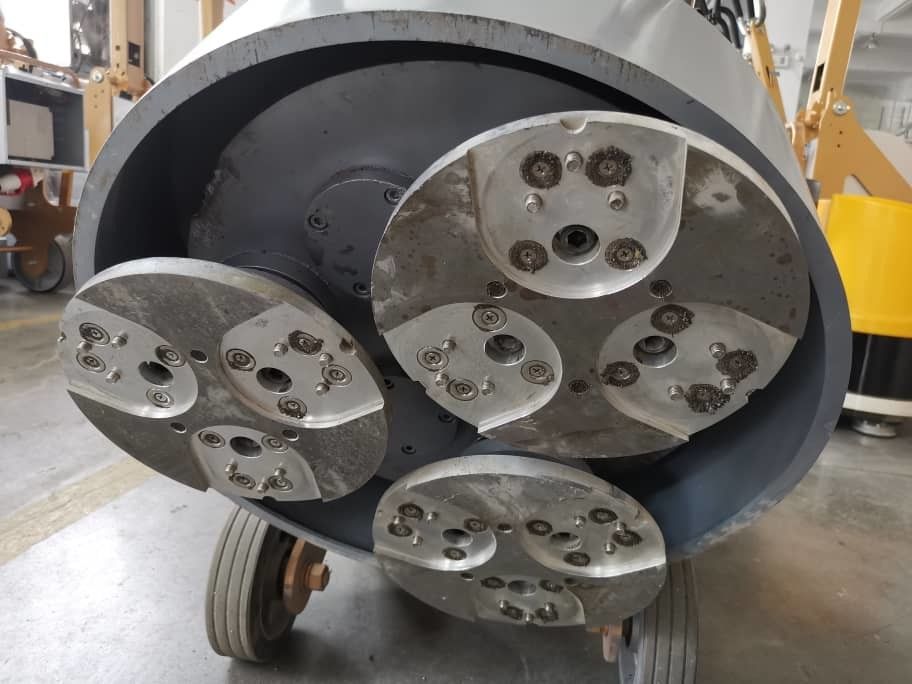

Put on abrasive pads and discs:



9 Heads Manual Concrete Floor Polisher Single Phase Planetary System 2

9 Heads Manual Concrete Floor Polisher Single Phase Planetary System 3



Resin pads:

9 Heads Manual Concrete Floor Polisher Single Phase Planetary System 4

9 Heads Manual Concrete Floor Polisher Single Phase Planetary System 5





Packing:



9 Heads Manual Concrete Floor Polisher Single Phase Planetary System 6

9 Heads Manual Concrete Floor Polisher Single Phase Planetary System 7

S-X9-550 Grinder Manual.pdf
