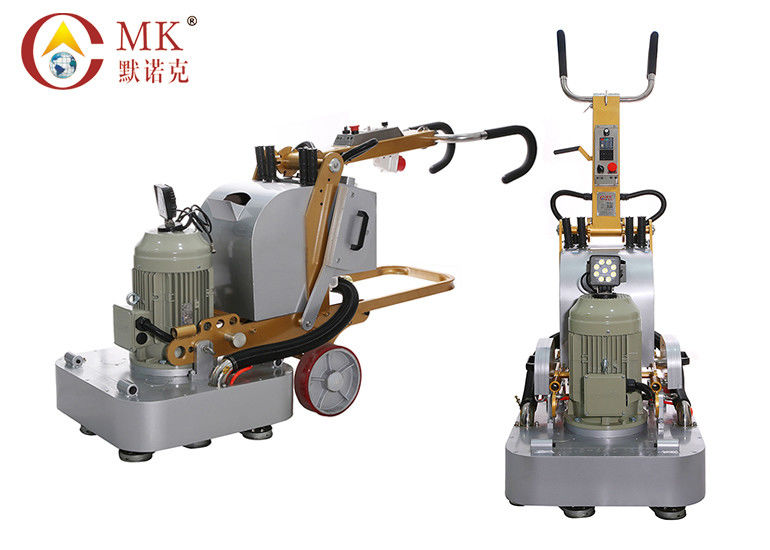

650mm 15HP 12 Heads Marble Concrete Floor Grinding Machine Terrazzo Grinder
Quick Detail:
| Name |
650mm 15HP 12 Heads Marble Concrete Floor Grinding Machine Terrazzo Grinder |
Application | Marble, granite, terrazzo, concrete floor |
| Type | S12-650 | Function | Leveling, polishing, grinding, renovating |
Description:
1. Aluminum alloy die-casts one body base plate is hard and don't deform, its work efficiency is about 3 pieces of MRK-V12-510.
2. 650mm 15HP 12 Heads Marble Concrete Floor Grinding Machine Terrazzo Grinder is used to produce a smooth finish on flat surfaces for free movement floors.
3. Free movement floors refer to areas where materials handling equipment operate in random, non-defined directions and have an infinate number of travel paths.
4. 650mm 15HP 12 Heads Marble Concrete Floor Grinding Machine Terrazzo Grinder with removable led light can work at night.
5. 4 plates with 12 pieces heads, each time need fix 12 pieces pads (blades).
6. With vacuum cleaner connector could install a vacuum cleaner outside.
7. It with water tank can wet and dry grinding.
8. It's apply to marble, granite, terrazzo, concrete floor, natural stone floor and rostone floor etc.
9. It's easy to control and has stable performance.
Application:
650mm 15HP 12 Heads Marble Concrete Floor Grinding Machine Terrazzo Grinder it's for stone leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...
| Model | S12-650 | S12-650 | |||
| Phase | 1 | 3 | |||
| Voltage | 220V | 380V | |||
| Power | 13HP/9.5KW | 15HP/11KW | |||
| Inverter | 15HP/11KW | 15HP/11KW | |||
| Speed | 0-1500rpm | ||||
| Work width | 650*650mm | ||||
| Heads | 12 pieces | ||||
| Grinding plate | 4 pieces | ||||
| Water tank | 30L | ||||
| NW(KG) | 366/435 | ||||
| GW(KG) | 416/485 | ||||
| Packing size(CM) | 110x70x134cm | ||||
Detail picture:

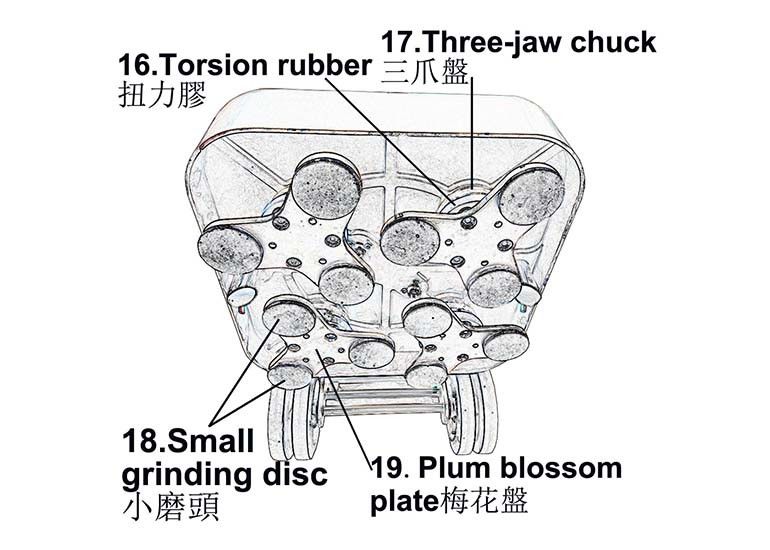

1.650mm 15HP 12 Heads Marble Concrete Floor Grinding Machine Terrazzo Grinder with luminum alloy die-casts one body base plate.
2. It can use the dry and wet resin polishing pads, metal diamond grind blades.
Available abrasive:
Diamond resin pads
1. Wet polishing pad for wet grinding and polishing for the marble, granite, terrazzo and concrete floor.
2. Dry polishing pad for dry grinding and polishing for the marble, granite, terrazzo and concrete floor.
3. Renovation pad for wet grinding and polishing for the marble, granite, terrazzo and concrete floor.
Diamond grinding shoes for concrete terrazzo and epoxy floor
Metal diamond grinding discs for concrete terrazzo and epoxy floor
Metal diamond grinding blades for concrete terrazzo and epoxy floor
Packing:
Carton with iron frame
Size: 110x70x134cm
Tag: concrete floor polishing machine, terrazzo floor grinding machine
Our products are sold all over the world, you can rest assured.
