Guangzhou Manul 380V 15HP 650mm X 650mm Concrete Floor Grinder

Guangzhou Manul 380V 15HP 650mm X 650mm Concrete Floor Grinder

    • Guangzhou Manul 380V 15HP 650mm X 650mm Concrete Floor Grinder
    • Guangzhou Manul 380V 15HP 650mm X 650mm Concrete Floor Grinder
  • Guangzhou Manul 380V 15HP 650mm X 650mm Concrete Floor Grinder

    Product Details:

    Place of Origin: China
    Brand Name: Merrock
    Certification: CE
    Model Number: S12-650 11KW

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD 2500-3500
    Packaging Details: Iron frame+carton, Export wooden box
    Delivery Time: 30
    Payment Terms: Western Union, MoneyGram, T/T
    Supply Ability: 20
    Contact Now
    Detailed Product Description
    Product Name: 380V 650mm Concrete Grinding Machine Voltage: 380V/440V
    Power(W): 1100KW/15HP Inverter(KW): 11KW/15HP
    Work Area: 650*650mm Grinding Speed: 0-1500RPM
    Water Tank: 30L Automatic Grade: Manual
    Function: Surface Polished, Marble Concrete Floor Grinding Polishing
    High Light:

    380V Marble Floor Grinder

    ,

    650mm Concrete Floor Grinding Machine



    Guangzhou Manul 380V 15HP 650mm X 650mm Concrete Floor Grinder





    Quick Detail:



    Description

    Guangzhou Manul 380V 15HP 650mm X 650mm Concrete Floor Grinder

    Application Marble, granite, quartz stone, terrazzo, concrete floor
    Type S12-650 Function Leveling, polishing, grinding, renovating





    Description:



    1. Aluminum alloy die-casts one body base plate is hard and don't deform, its work efficiency is about 3 pieces of MRK-V12-510.
    2. 650mm Concrete Grinding Machine 20HP Floor Grinder is used to produce a smooth finish on flat surfaces for free movement floors.
    3. Free movement floors refer to areas where materials handling equipment operate in random, non-defined directions and have an infinate number of travel paths.
    4. 380V 650mm Concrete Grinder For Marble Granite Terrazzo Stone Floor Grinding with removable led light can work at night.
    5. 4 plates with 12 pieces heads, each time need fix 12 pieces pads (blades).
    6. With vacuum cleaner connector could install a vacuum cleaner outside.
    7. It with water tank can wet and dry grinding.
    8. It's apply to marble, granite, terrazzo, concrete floor, natural stone floor and rostone floor etc.
    9. It's easy to control and has stable performance.




    Application:



    Guangzhou Manul 380V 15HP 650mm X 650mm Concrete Floor Grinder it's for stone leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...



    Specification:

    Model S12-650 S12-650
    Phase 1 3
    Voltage 220V 380V
    Power 13HP/9.5KW 15HP/11KW
    Inverter 15HP/11KW 15HP/11KW
    Speed 0-1500rpm
    Work width 650*650mm
    Heads 12 pieces
    Grinding plate 4 pieces
    Water tank 30L
    NW(KG) 366/435
    GW(KG) 416/485
    Packing size(CM) 110x70x134cm





    Detail picture:

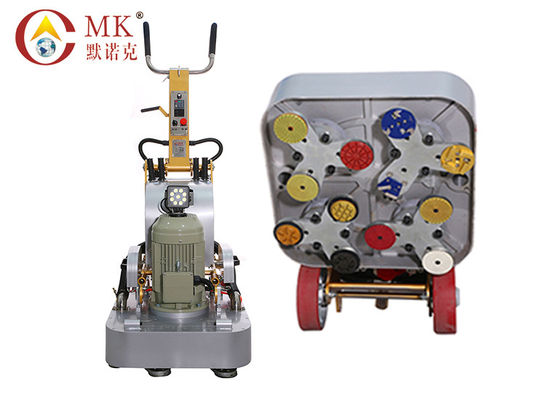

    1.380V 650mm Concrete Grinder For Marble Granite Terrazzo Stone Floor Grinding with luminum alloy die-casts one body base plate.

    2. It can use the dry and wet resin polishing pads, metal diamond grind blades.

    Guangzhou Manul 380V 15HP 650mm X 650mm Concrete Floor Grinder 0

    Guangzhou Manul 380V 15HP 650mm X 650mm Concrete Floor Grinder 1







    Available abrasive:



    Diamond resin pads



    1. Wet polishing pad for wet grinding and polishing for the marble, granite, terrazzo and concrete floor.

    2. Dry polishing pad for dry grinding and polishing for the marble, granite, terrazzo and concrete floor.

    3. Renovation pad for wet grinding and polishing for the marble, granite, terrazzo and concrete floor.



    Guangzhou Manul 380V 15HP 650mm X 650mm Concrete Floor Grinder 2





    Diamond metal blades



    1.Diamond grinding shoes for concrete terrazzo and epoxy floor

    2.Metal diamond grinding discs for concrete terrazzo and epoxy floor

    3.Metal diamond grinding blades for concrete terrazzo and epoxy floor

    Guangzhou Manul 380V 15HP 650mm X 650mm Concrete Floor Grinder 3





    Packing:



    Carton with iron frame

    Size: 110x70x134cm





    Tag: terrazzo floor polishing machinegranite floor grinding machine
