Three Phase 710mm 11KW Concrete Floor Polishing Equipment

Three Phase 710mm 11KW Concrete Floor Polishing Equipment

  • Three Phase 710mm 11KW Concrete Floor Polishing Equipment
  • Three Phase 710mm 11KW Concrete Floor Polishing Equipment
Three Phase 710mm 11KW Concrete Floor Polishing Equipment
Product Details:
Place of Origin: China
Brand Name: Merrock
Certification: CE
Model Number: V12-710
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 2500-3500
Packaging Details: Iron frame+carton, Export wooden box
Delivery Time: 30
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 20
Contact Now
Detailed Product Description
Product Name: Three Phase Black / Yellow Color 710mm 15HP Terrazzo Floor Grinder Voltage(V): 380V/440V
Motor Output: 11KW Inverter (HP): 11KW
Grinding Width: 710*710mm Grinding Speed: 0-1500RPM
Water Tank: 30L/Yellow Function: Remove Old Floor Coverings, Level Out The Underlying Concrete Surface And Create The Perfect Surface For Further Treatment Of Your Floor
High Light:

11KW Concrete Floor Polishing Equipment

,

710mm Concrete Floor Polishing Equipment

,

12 heads concrete floor polisher



Three Phase Black / Yellow Color 710mm 11KW Concrete Floor Grinder





Quick Detail:



Name

Three Phase Black / Yellow Color 710mm 11KW Concrete Floor Grinder

Application Marble, granite, terrazzo, concrete floor
Type V12-710 Function Leveling, polishing, grinding, renovating





Description:



1. Wtih multi-functional grinding plate is suitable for all kinds of diamond pad ands blades.
2. Three Phase Black / Yellow Color 710mm 11KW Concrete Floor Grinder is used to produce a smooth finish on flat surfaces for free movement floors.
3. Free movement floors refer to areas where materials handling equipment operate in random, non-defined directions and have an infinate number of travel paths.
4. 4 plates with 12 pieces heads, each time need fix 12 pieces pads (blades).
5. With vacuum cleaner connector could install a vacuum cleaner outside.
6. It with water tank can wet and dry grinding.
7. It's apply to marble, granite, terrazzo, concrete floor, natural stone floor and quartzite floor etc.
8. It's easy to control and has stable performance.




Application:



Three Phase Black / Yellow Color 710mm 11KW Concrete Floor Grinder it's for marble floor leveling, granite floor polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...



Why is grinding the best method to level a surface and for floor preparation?

Thanks to grinding, you can remove old floor coverings, level out the underlying concrete surface and create the perfect surface for further treatment of your floor ...



Name Three Phase 710mm 11KW Concrete Floor Grinder S12-710
Weight 375 KG
Motor output 11 KW
Power consumption 32 A
Voltage 380 V
Inverter 11 KW
Revolution speed 0-1500 rpm
Grinding discs 4 pieces
Grinding heads 12 pieces
Grinding width 710*710 mm
Grinding motors 1
Water tank 30L





Feature:



1. Three Phase Black / Yellow Color 710mm 11KW Concrete Floor Grinder with magnetic plate.

2. 710 mm big width improve the working efficiency.

3. It can use the dry and wet resin polishing pads, metal diamond grinding blades.





Detail picture:

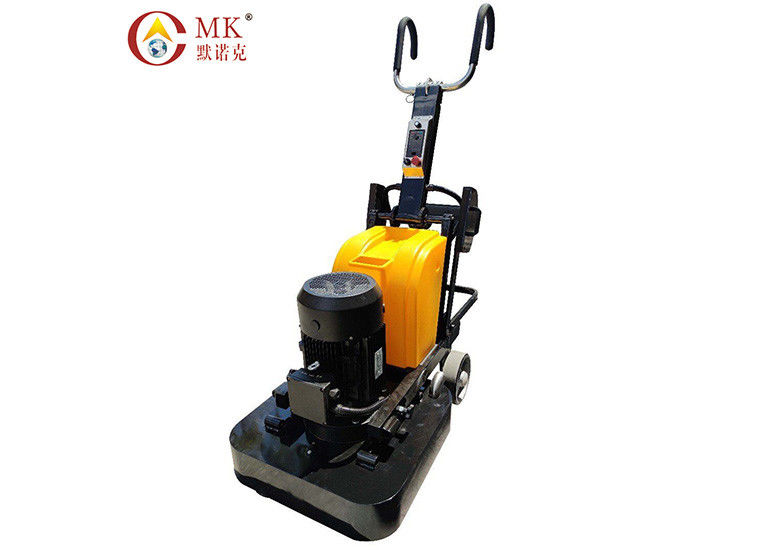

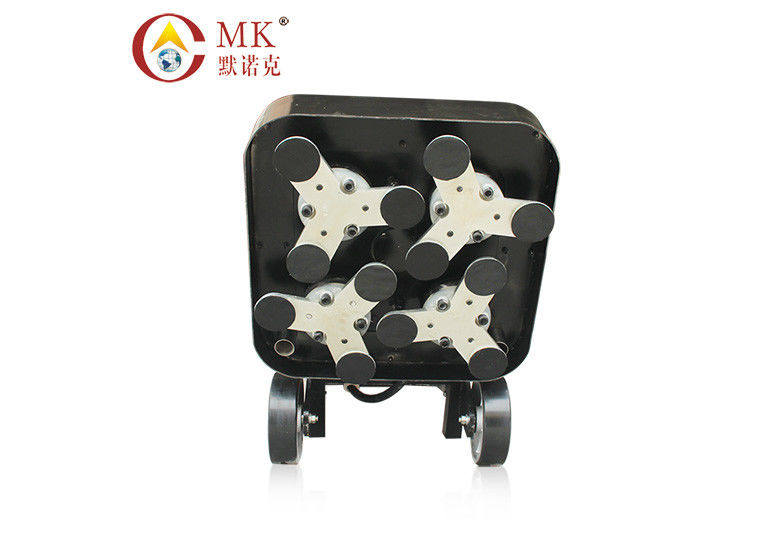

Three Phase 710mm 11KW Concrete Floor Polishing Equipment 0





Tools for the machine:



Diamond resin polishing pads ( Wet polishing pad / dry polishing pad / renovation pad)



1. Wet polishing pad for wet grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.

2. Dry polishing pad for dry grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.

3. Renovation pad for wet grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.





Diamond metal grinding shoes (J007) for concrete terrazzo and epoxy floor

Metal diamond grinding discs for concrete terrazzo and epoxy floor

Metal diamond grinding blades for concrete terrazzo and epoxy floor





Packing:



Carton + iron frame (Export package)
